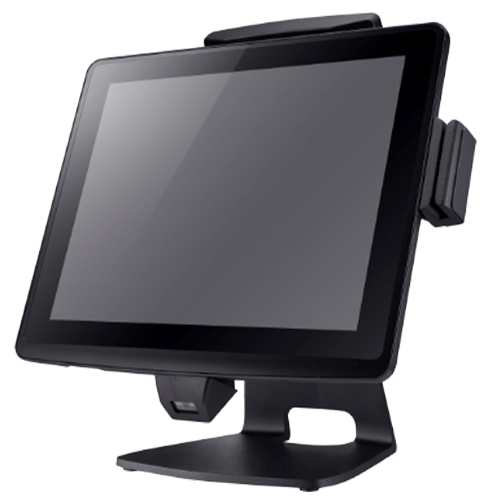

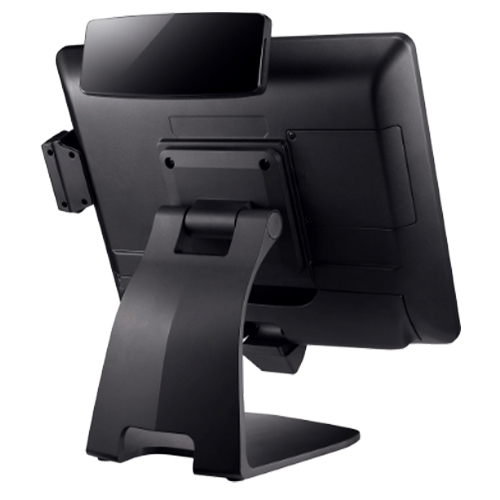

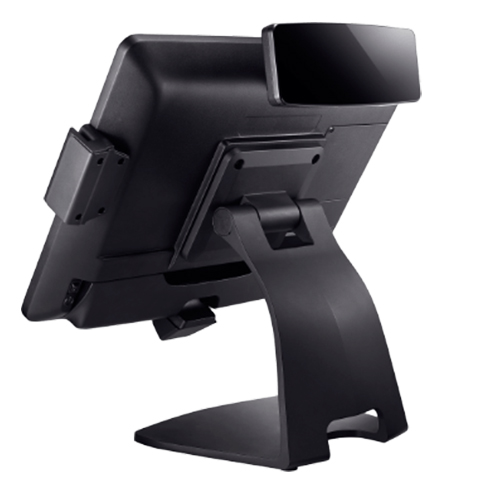

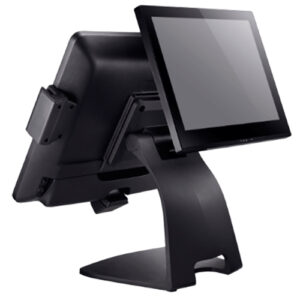

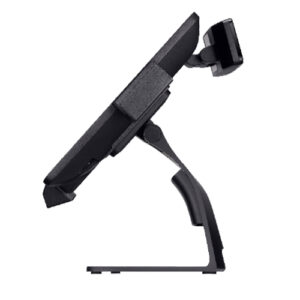

Zahabi ZP-T700 All-In-One POS Terminal
Zahabi ZP-T700 All-In-One POS Terminal
15″ all-in-one fanless POS terminal with high performance 7th Gen. Intel® Core-i processor
Features
15” all-in-one panel PC style with bezel-free touch display
Intel® 7th generation ultra low power processors
A fanless thermal solution helps ensure system reliability
Tool-free interchangeable I/O extension board
IP64 water & dust-proof front panel protection
5V/12V DC powered COM with jumper-less BIOS setting
Optional peripherals include: VFD & 8”/10.4” customer display, 1D & 2D barcode scanner, MSR, iButton, RFID, fingerprint reader
Download DatasheetProduct Details
| Display | LCD Display Size: | 15″ TFT LCD |
|---|---|---|
| Max. Resolution: | 1024 X 768 | |
| Brightness: | 350 cd/m2 | |
| Support Color: | 16.7M colors | |
| Backlight: | LED |
| Touch Panel | Type: | Five-Wire Analog Resistive or Projected Capacitive |
|---|
| Processor | CPU/ Chipset | Intel® Core™ i7-7500U (Dual Core 4M Cache, up to 3.50 GHz) Intel® Core™ i5-7200U (Dual Core 3M Cache, up to 3.10 GHz) Intel® Core™ i3-7100U (Dual Core 3M Cache, up to 2.40 GHz) Intel® Celeron® 3965U (Dual Core 2MB Cache, up to 2.20 GHz) |
|---|
| Memory | X 1 (DDR4-2133MHz SO-DIMM, up to 16GB) |
|---|
| Storage |
|
|---|
| I/O connectors | USB: | USB 3.0 X 4 |
|---|---|---|
| Powered COM: | X 3 (RJ45 x 1 with DC 5V/12V selectable) | |
| Cash Drawer Port: | X 1 (12V/24V RJ11 cash drawer port) | |
| VGA: | X 1 | |
| LAN: | X 1 (RJ45, 10/100/1000 Base-T) |
| I/O Expansion | Type C: | X 1 24V Powered USB, X 2 USB 2.0, X 1 Mic-in, X 1 Line-out |
|---|---|---|
| Type E: | X 4 USB2.0, X 1 COM (RJ45 with DC 5V/12V selectable) |
| Optional Peripherals | VFD / 8″/10.4” second display / MSR / iButton / RFID / fingerprint reader / 1D/2D barcode scanner / WiFi |
|---|
| Power Supply | 90W or 150W 19V lockable 3-pin DC input power adapter |
|---|
| OS Support | Linux / Win 10 IoT Enterprise |
|---|
| Chassis Housing/ Color | Aluminum/ black |
|---|
| Environment | Temperature: |
|
|---|---|---|
| Relative Humidity: | 20% to 80% non-condensing |
| Dimension | 374(W) x 207(H) x 356(D) mm |
|---|
