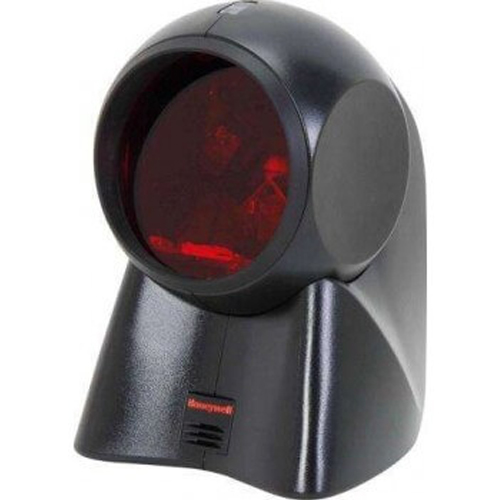

Honeywell MK7180 Orbit – USB kit, Honeywell MK7120 Orbit, 1D Laser, presentation, omnidirectional. Includes 9.2′ straight USB cable. Color: Black.

Honeywell’s OrbitCG 7180 omnidirectional hands-free barcode scanner, based on the original award-winning design of the Orbit 7120, offers all the advantages of the Orbit 7120 with two unique features. With the push of button, CodeGate® technology augments the7180’s patented 20-line scan pattern with a single-line mode ideal for targeted or menu scanning. The MS7180 hands-free scanner also includes an integrated EAS antenna for Checkpoint compatibility. It also features EAS deactivating and decoding ability in a single scan.

Key Features & Benefits:

The Honeywell’s MK7180 barcode scanner offers a range of features to enhance productivity:

• Scanning Pattern: A 20-line omnidirectional scan pattern offers aggressive scanning, particularly beneficial for hand presentation applications.
• Optimized Scan Performance: The Orbit scanner incorporates an engineered “sweet spot” to optimize scan performance and achieve a high first-pass read rate.
• Adjustable Scan Head: Users can tilt the scanner up to 30°, facilitating targeted scanning of larger products and enhancing flexibility.
• Firmware Updates: Retail operations can safeguard their POS investment with free firmware updates via the Honeywell MetroSet™ 2 configuration software and a standard PC.
• Integrated RF EAS Antenna (Orbit 7180 Scanner Only): Increases efficiency by simultaneously deactivating RF EAS tags and decoding barcodes.

Product Specifications:

Technical:

• Dimensions (L x W x H): 105 mm x 102 mm x 150 mm (4.1 in x 4.0 in x 5.9 in)
• Weight: 400 g (14.1 oz)

Electrical:

• Input Voltage: 5 VDC ±0.25 V
• Operating Power: 900 mW (180 mA @ 5 V)
• Standby Power: 850 mW (170 mA @ 5 V)
• Host System Interfaces: USB, RS-232, Keyboard Wedge, IBM 468xx (RS485)

Environmental:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 5% to 95% relative humidity, non-condensing
• Drop: Designed to withstand 1.2 m (4 ft) drops
• Environmental Sealing: Sealed to resist airborne particulate contaminants
• Light Levels: 4842 Lux

Scan Performance:

• Scan Pattern: Omnidirectional: 5 fields of 4 parallel lines; button-activated single line (7180)
• Scan Speed: Omnidirectional: 1120 scan lines per second; single line: 56 scan lines per second (7180)
• Print Contrast: 35% minimum reflectance difference
• Pitch, Skew: 60°, 60°
• Decode Capability: Reads standard 1D and GS1 DataBar symbologies

Warranty:

Three-year factory warranty
