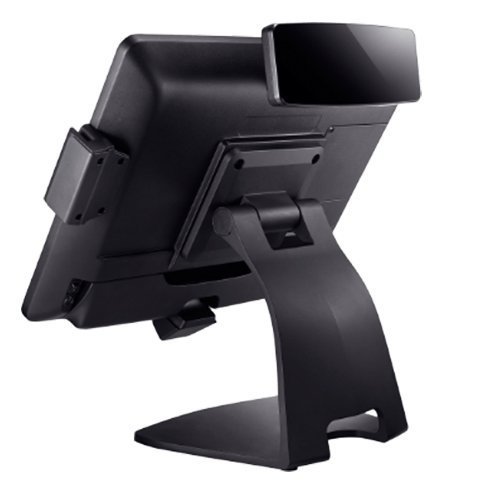

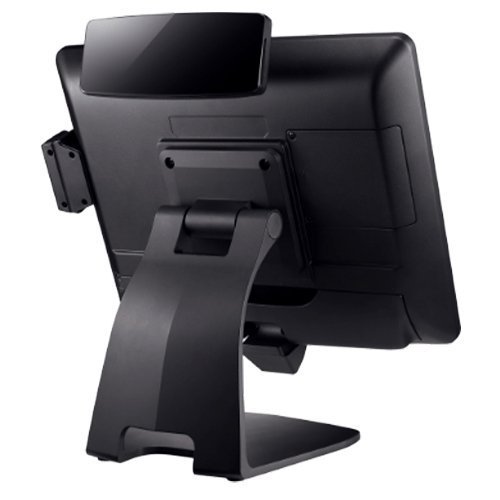

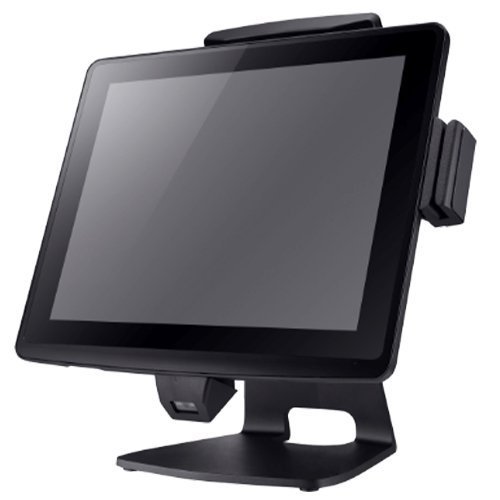

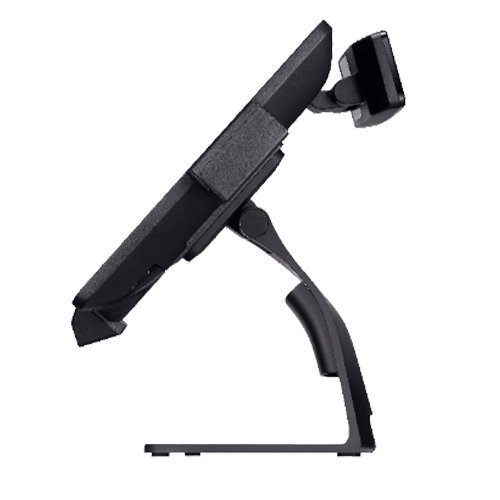

Zahabi ZP-T700 Intel Core i5 2.5 GHz W/ 8GB RAM Upgradable to 16GB (DDR4), 256GB SSD 15″ LCD Touch Screen (1024 X 768), VFD, Aluminum Casing, IP64, (Made in Taiwan)
| Display |
LCD Display Size: |
15″ TFT LCD |
| Max. Resolution: |
1024 X 768 |
| Brightness: |
350 cd/m2 |
| Support Color: |
16.7M colors |
| Backlight: |
LED |
| Touch Panel |
Type: |
Five-Wire Analog Resistive or Projected Capacitive |
| Processor |
CPU/ Chipset |
Intel® Core™ i7-7500U (Dual Core 4M Cache, up to 3.50 GHz)
Intel® Core™ i5-7200U (Dual Core 3M Cache, up to 3.10 GHz)
Intel® Core™ i3-7100U (Dual Core 3M Cache, up to 2.40 GHz)
Intel® Celeron® 3965U (Dual Core 2MB Cache, up to 2.20 GHz)
|
| Memory |
X 1 (DDR4-2133MHz SO-DIMM, up to 16GB) |
| Storage |
- X 1 (2.5” SATAIII HDD or SSD )
- X 1 M.2 (Support 2242 & 2280) (SSD)
|
| I/O connectors |
USB: |
USB 3.0 X 4 |
| Powered COM: |
X 3 (RJ45 x 1 with DC 5V/12V selectable) |
| Cash Drawer Port: |
X 1 (12V/24V RJ11 cash drawer port) |
| VGA: |
X 1 |
| LAN: |
X 1 (RJ45, 10/100/1000 Base-T) |
| I/O Expansion |
Type C: |
X 1 24V Powered USB, X 2 USB 2.0, X 1 Mic-in, X 1 Line-out |
| Type E: |
X 4 USB2.0, X 1 COM (RJ45 with DC 5V/12V selectable) |
| Optional Peripherals |

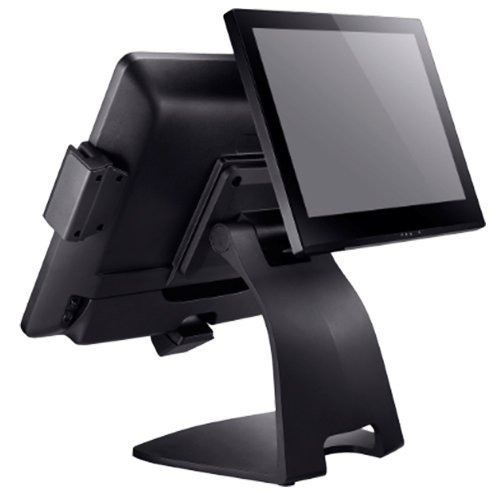

VFD / 8″/10.4” second display / MSR / iButton / RFID / fingerprint reader / 1D/2D barcode scanner / WiFi
|
| Power Supply |
90W or 150W 19V lockable 3-pin DC input power adapter |
| OS Support |
Linux / Win 10 IoT Enterprise |
| Chassis Housing/ Color |
Aluminum/ black |
| Environment |
Temperature: |
- Operation 32° to 95° F (0° to 35° C)
- Storage -4° to 140° F (-20° to 60° C)
|
| Relative Humidity: |
20% to 80% non-condensing |
| Dimension |
374(W) x 207(H) x 356(D) mm |
